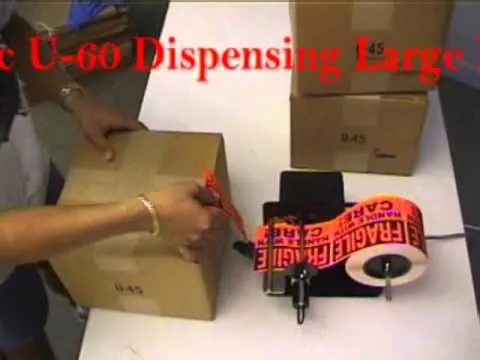

U-60 Label Dispenser
The Dispensa-Matic U-60 is ideal for dispensing pressure-sensitive labels from 0.375″ up to 6.0″ wide. Labels are peeled from their liner and presented to the user for easy grab and go labelling.
This semi-automatic electric label dispensing system is built to last using high-quality metal parts for years of service with little downtime. The U-60 is made in the USA and comes with a 3-year warranty.
U-60 Label Dispenser
The Dispensa-Matic U-60 Label Dispenser is a heavy-duty, semi-automatic electric label dispenser for labels from 0.375″ to 6.0″ wide x 0.375″ to any length. This label dispenser advances at over 7″ per second.
Features include:
Butt-cut or die-cut label compatible
Multiple row compatible
- Semi-automatic dispenser: pick, apply and repeat
- Label cartons, envelopes, brochures, bottles, bags, cans – anything that needs a label
- Side frames are made from the highest quality metals, then formed, countersunk, de burred and inspected
- Dispensing tables are formed out of aircraft-grade aluminium. The peel edge is hand-milled to spec within .001″
- Dispensing tables are polished with ultra-fine polishing compound so paper flows freely around the plate
- The U-60 motor is a shaded-pole AC motor
- Dispensa-Matic U-60 uses Micro-Switch branded switches, which are specifically designed to detect all kinds of labels: paper, Mylar, foil, holographic and clear; photo cell available
- International compatibility; motor is compatible for Europe and all other 220V 50/60hz
- Dimensions: 11″ x 13″ x 8″
- Weight: 13 lbs
Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.
Available Documents
Geset 117 Top and Bottom Labelling System
The Geset 117 labelling system is used to label square products on the top and bottom side automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage on the labelling system. Care should be taken on accurate alignment of the products. It is essential that the products are forwarded separately to the applicator with a gap between each other.
When the light barrier is reached, an application trigger is tripped. Both label applicators apply then in Wipe On procedure a label onto the product. The label on top side is pushed on the product by a brush or roller. The label on bottom side is pushed on the product by the self-weight of the product. After labelling the products move on and can be removed from conveyor by the customer.
View ProductXB4Jet/XB8Jet
The compact and robust controllers XB4JET and XB8JET are used to control the inkjet printheads for product marking solutions. The following Markoprint printing technologies are supported: Hewlett-Packard, Funai, Trident.
View ProductModel 4300e Pro-Apply All-Electric Label Printer-Applicator
Weber’s economical Model 4300e Pro-Apply is an electrically-operated printer-applicator that features the functionality often limited to higher-duty pneumatic systems.
The result is a versatile in-line system that combines high-quality label printing and application that ensures fast, accurate pressure-sensitive labelling – and now it’s available without the need to use externally-supplied compressed air.
• Applies labels up to 6″ wide x 6″ long at up to 12 ips
• Prints text, bar codes and graphic images @ 203, 300 or 600 dpi
• Direct-tamp label application
• Accurate labeling to within ±0.03″
Workstation Printer
The Workstation is the newest generation of desktop printers from Datamax-O’Neil. These compact desktop printers offer an industry leading design that contribute to its durability while its standard features are similar to those found on the Performance printer line. These features include Ethernet 10/100, 50 resident/scalable fonts, 300 dpi printhead for superior print quality and industry standard PCL5e printer language. The compact design is perfect for environments that require a small footprint and the internal design provides reliable performance and efficient output.
View Product
