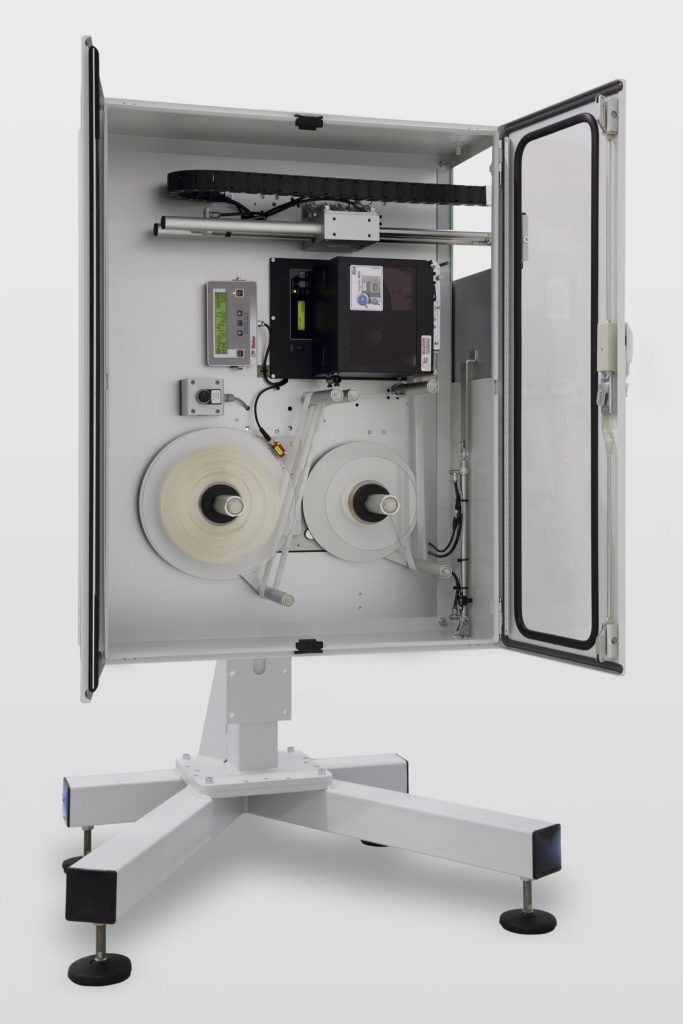

Weber LA4050I – Industrial Printer Applicator

Based on a modular construction the Weber LA4050I is the Industrial version of our proven Weber LA4040E Standalone Labelling System. The system has all the features and benefits of the 4050E, capable of numerous methods to print and apply a label. The design comprises a feeder module, a printing module, label winder and unwinder with numerous applicator types. The standard Tamp-Blow system has a quick-change system for changing the tamp pad which significantly reduces the changeover time to other label formats. The entire system is encased in an Industrial Cabinet suitable for harsh Production or Warehouse environments.

Weber LA 4050I Industrial Labelling System

Our Weber LA4050I print and apply labeller eliminates all the headaches and manual adjustments that cause downtime in the day-to-day operations of a normal labelling system. Designed with all the key components that make a smart, reliable labeller, it has an integrated print engine, with the ability to Direct Apply on-demand labels up to 150 packs per minute with a built in controller with patented technology to precisely and automatically control the entire system. The system prints and applies labels from 10 mm x 5 mm up to 180 x 300 mm with a feeder output of up to 210 labels per minute with our “blow-box” system.

The system is modular in construction to allow flexibility for changes in application or indeed printing technology. The Stroke unit, Print Engine, Unwind and Rewind System are interchangeable and easily replaced which allows you to make changes to your labelling process quickly and easily and avoiding a complete system replacement.

The system comes with an Industrial Cabinet which pivots on its U-Arm which is easily mounted to our System Stand mounting, the system can be rotated 360 degrees in any direction which allows the product to be labelled from any side and in any orientation. A removable display controller supports this flexibility and facilitates simple and quick operation by means of targeted plain text user information and stored system parameters. Flexible control and networking of the system allows integration via a number of interfaces such as Ethernet, serial and parallel data connections as well as USB.

Print Engine Technology

Working closely with all major international print engine manufacturers Weber has designed the LA 4050E with flexibility and localization in mind. Whether Zebra, Sato, Avery, CAB or Datamax-O’Neil is the print engine of the choice, the Weber LA 4050E can accommodate. Where no customer preference is indicated our fully trained, experience and certified Sales staff will recommend the best print engine and application method to suit your individual requirements.

The LA 4050E also can be equipped with an RFID print module that supports existing RFID standards.

Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.

Available Documents

LPA_TIN_054D_LA_4050_I_GB
