Bottle-Matic Label Applicator
This table top labelling system is deal for applying single pressure-sensitive labels to cylindrical objects like bottles and cans. These are perfect for small craft brewery or vineyard labelling applications.
The Bottle-Matic label applicators are available in 10″-wide and 16″-wide models that fit most products. The unit is fully adjustable so you can label objects from 0.5″ to 10″ diameter; ideal for everything from test tubes to 1.5-gallon bottles.
Bottle-Matic Label Applicators

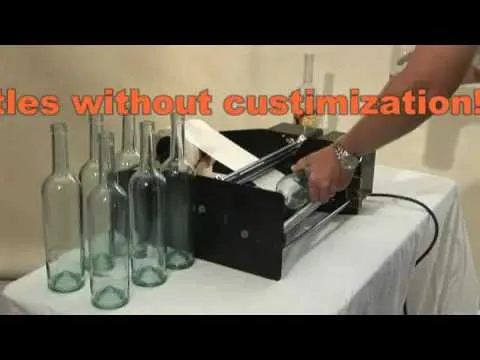

Bottle-Matic bottle labellers enable you to label all kinds of cylindrical objects by simply inserting the container and depressing a footswitch. Labels are applied at over 4.5″ per second – most water bottles are labelled in less than two seconds. The operator then removes the bottle and inserts another to start the procedure again. After a rhythm is established bottles can labelled very quickly.
The Bottle-Matic comes in two sizes: Standard 10″ wide and the larger 16″ wide version for taller products. Both can handle products up to 10″ in diameter.
• Label objects from 0.5″ to 10″ diameter; ideal for all round containers from water bottles to paint jars and cosmetics.
- Accurate: Maintains 0.0625″ side-to-side accuracy on most containers.
- Labels cylinders to 15″ in length (or longer if the item has a neck).
- Able to handle most tapered containers by simply adjusting the idle roller position.
- Labels over 1000 pieces per hour with average dexterity.
- Side frames are laser cut from quality steel, then formed, countersunk, deburred and inspected.
- Dispensing tables are formed out of 6061-T6 aluminium. Its peel edge is hand- milled to spec within .001″.
- Dispensing tables are polished with ultra-fine polishing compound so paper flows freely around the plate.
- Bottle-Matic uses dual AC-shaded pole gear motors.
- Micro-switch activated; will work on all kinds of labels.
- Modifications are available for those hard-to-label containers.
