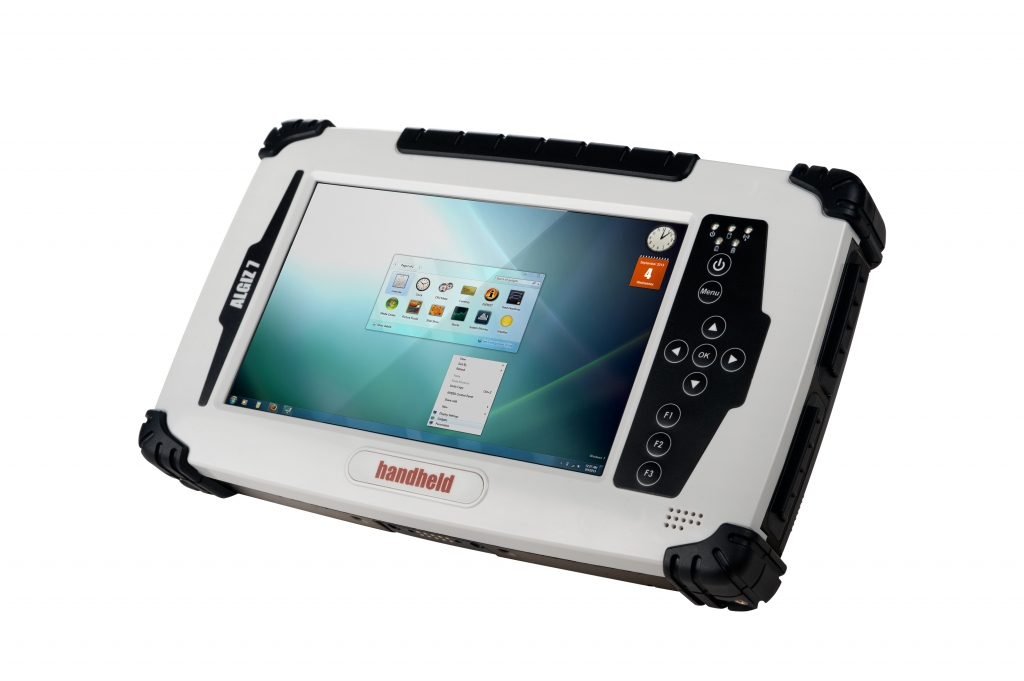

ALGIZ 7
SUPER RUGGED, ULTRA-MOBILE
The Algiz 7® represents the next generation of mobile PC performance. This rugged tablet PC is small, light and fast, with multiple connectivity options and a wide range of functionality. If you work with detailed maps or other visuals and need a larger display than a handheld, or if you need full Windows PC functionality, this Algiz tablet’s 7-inch screen and Windows 7 platform make it a great solution. And it’s tough enough to work in the most challenging environments.
Top performance starts with great power. The Algiz 7 features an impressive Intel® Atom™ 1.6 GHz processor, with a massive 128 GB SSD and 4 GB of DDR3 RAM. It runs the state-of-the-art Windows 7 Ultimate operating system, the most powerful tool available for the field user. That means you’ll be able to work in all the top PC applications, in the office and out in the field.
And it takes this level of performance to match up with all the mobile capabilities the Algiz 7 delivers. For example, GPS navigation functionality is fully built in. And when it comes to communicating with other devices the Algiz 7 gives you a wide range of options – use BT for short-range wireless connection to other equipment, or 802.11 WLAN if you have a local network you’d like to sync with. The fully integrated 3G antenna and modem provide high-speed GSM/UMTS/EVDO data transmission. Anytime-anywhere Internet access is the key to productivity in today’s mobile workforce, and the Algiz 7 is ready for Gobi™ 3000 technology – which means that you’ll be able to work on your choice of wireless frequency anywhere in the world.
To collect visual information in the field, the Algiz 7 features a built-in 5-megapixel camera with LED light. And you can extend your work capacity with an array of connectivity opportunities, including waterproof USB 2.0 and RS232 ports, and LAN ports.
The Algiz 7 packs all this performance into a small package. Weighing in at a mere 1.1 kg, this compact tablet features a 7-inch widescreen touch display with the new and unique MaxView™ technology, which provides spectacular brightness in outdoor conditions so you can see your work even in direct sunlight. And you can put in a full day’s work, with a hot-swappable 2600 mAh dual battery pack that lets you change batteries without shutting down.
With 10 easy-to-use function buttons and an on-screen QWERTY soft keyboard, you can use the Algiz 7 efficiently in the office. But its heart is outdoors, where its versatility and built-in ruggedness make it stand out. It meets stringent MIL-STD-810G military standards for withstanding humidity, vibration, drops and extreme temperatures, and it keeps dust and water out as well. So use it in any kind of weather, let it rattle on the dashboard, rinse it off after a dirty day – the Algiz 7 is built for hard work.
The winning combination of ruggedness and portability makes the Algiz 7 perfect for industries such as homeland security, public safety, field service, GIS/mapping, logistics, railways, telecommunications, energy, law enforcement, military, warehousing – just about anything. If you want portable, professional performance out in the field, the Algiz 7 delivers what you need.
Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.
Available Documents
ALGIZ 7 Data Sheet- Direct thermal
- 203 dpi [8 dots/mm], 300 dpi [12 dots/mm] optional resolution
- 5 ips [125 mm/s] maximum print speed
- 4.1″ [104mm] maximum print width
- Serial, USB, LAN, wireless 802.11b/g with WPA2 security protocol (optional)
- PL-Z, PL-I, and PL-B emulations on the DPL versions
NAUTIZ ETICKET PRO II
MOBILE TICKETING MADE EASY
A smart choice for electronic fare collection and ticket validation, the Nautiz eTicket Pro II merges ultimate mobility with true field functionality. This rugged handheld is a reliable and efficient tool for mobile ticketing, transactions and validations, designed specifically with transit workers in mind — it’s packed with features, it’s compact and truly portable, and it offers a reliable computing solution for challenging worksite environments.
View ProductZebra ZE500 Print Engines
The new ZE500 Series takes an innovative approach to OEM print engines. Leveraging extensive customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 Print Engine is designed to keep mission critical print-and-apply applications operating without interruptions.
View ProductCompact 4 Mobile
The Compact4 Mark II mobile printer is designed for installation on conveyors, forklift trucks and mobile stations. It can operate from a connection to a forklift’s battery and its vibration-proof design makes it the perfect choice for warehousing logistics.
Specifications at-a-glance:
Geset 125 Horizontal Labelling System
The Geset 125 labelling system is used to label cylindrical products automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage of the labelling system. Care should be taken on accurate alignment of the products between the two freely mounted rollers of the roll conveyor. The side guide’s position the products flush with the outside edge of the roll conveyor.
The roll conveyor feeds the products to the labeller. There the label is applied with the part running forward onto the product and it is pushed by rotation and the back pressure of the wrapping unit onto the product. The back pressure of the wrapping unit (the speed of the wrapping unit is twice as fast as the speed of the base conveyor) enables the product in rotation. The roll conveyor forwards the finished labelled products to the outfeed. Here the products are removed manually or by the customer’s conveying system.
