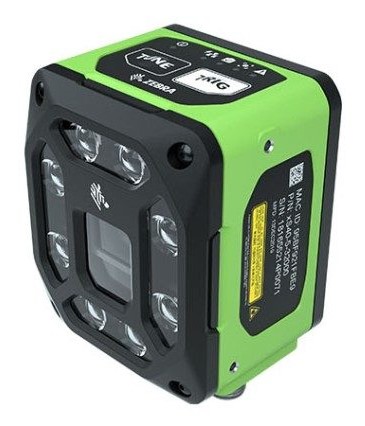

Zebra FS40 Fixed Industrial Scanner

Enable Performance. Inspire Potential. Experience The Difference.

Today more than ever, the increasing demands of international commerce and its global supply chain are pressuring companies to deliver more — and to do it faster. From manufacturing to logistics to the end customer, success is driven by the ability to quickly move and track the products that drive your business.

Address it all with Zebra’s FS40 Fixed Industrial Scanner designed to meet the comprehensive requirements of today’s production and delivery processes. The FS40 easily keeps pace with the fastest moving operations, enabling track-and-trace through the automatic and flawless decode of information on every part and package as it moves through production, storage and fulfilment — capturing even the most challenging barcodes. The result? Best-in-class production, warehousing, distribution and logistics processes that inspire businesses to reach their highest potential.

Comprehensive Industrial Data Capture Functionality, Packaged In A Single Device

Empower your enterprise with real-time track and trace of every item with the Zebra FS40. Multiple connectivity options easily integrate into your PLC or Host network, enabling your primary scanning applications to feed all the processes that drive your business. Zebra’s powerful Aurora software platform provides a highly intuitive and elegant interface that makes the FS40 easy to set up, deploy and run. And you can easily upgrade to new capabilities, future-proofing your investment.

Comprehensive Feature Set, Extraordinary Flexibility, Unsurpassed Value

Tailor this adaptable Fixed Industrial Scanning and Machine Vision device to your specific needs by choosing from flexible options that include standard and wide-angle field of view, liquid lens options, built-in filters, and multiple illumination, power and connectivity options.

Comprehensive Industrial Data Capture Functionality

The FS40 delivers a broad set of capabilities required to meet complex barcode capture requirements, all in a single package. Tailor the device to your specific needs by choosing from flexible options like decode range, illumination, connectivity, power and more. And you can add advanced features with simple software upgrades.

Flexible Options To Meet Practically Any Application Need

Isolate production data and store images in the cloud or on a local server with two available Ethernet ports. Automate end-to-end processes with up to nine digital input/output ports. Integration is easy with more network connectivity options. Choose a standard or wide field of view on a colour or monochrome sensor with your preferred illumination. And power it all with PoE+.

Superior Scanning Reliablity

Get a perfect image every time with ImagePerfect+, which captures 16 different images on a single item, each with its own settings. And with PRZM Intelligent Imaging, you get fast capture of even the most challenging 1D/2D barcodes and direct part marks.

Transform The FS40 Into A Machine Vision Smart Camera

Simply purchase a license to add advanced machine vision capabilities — no need to purchase a new device. With machine vision, a new layer of intelligence allows you to automatically determine the quality of a part or item in a split second, enabling error-proofing, reducing cycle times and increasing productivity.

Specs:

- - Aurora Software – Intuitive platform that makes it easy to set up, deploy, and run the FS40

- - ImagePerfect+ – Process up 16 different images simultaneously for high read rates

- - License Upgrades – Decoder Packages and Machine Vision Toolsets

- - Interface Ports – Single or Dual Ethernet, PoE, USB-C, 5-pin External Light Power & Control/GPIO, 12-pin Power/GPIO/RS-232

- - Image Sensor – Monochrome: 2.3 MP CMOS Sensor with Global Shutter and 3.0 um Pixel Size

- - Configurable IO – Digital IO plus Powerful integrated illumination or external lights

- - Communications Protocols – Ethernet/IP, PROFINET, CC-Link, Modbus TCP, TCP/IP

Some features available in a future release. Contact Weber today for more information.
