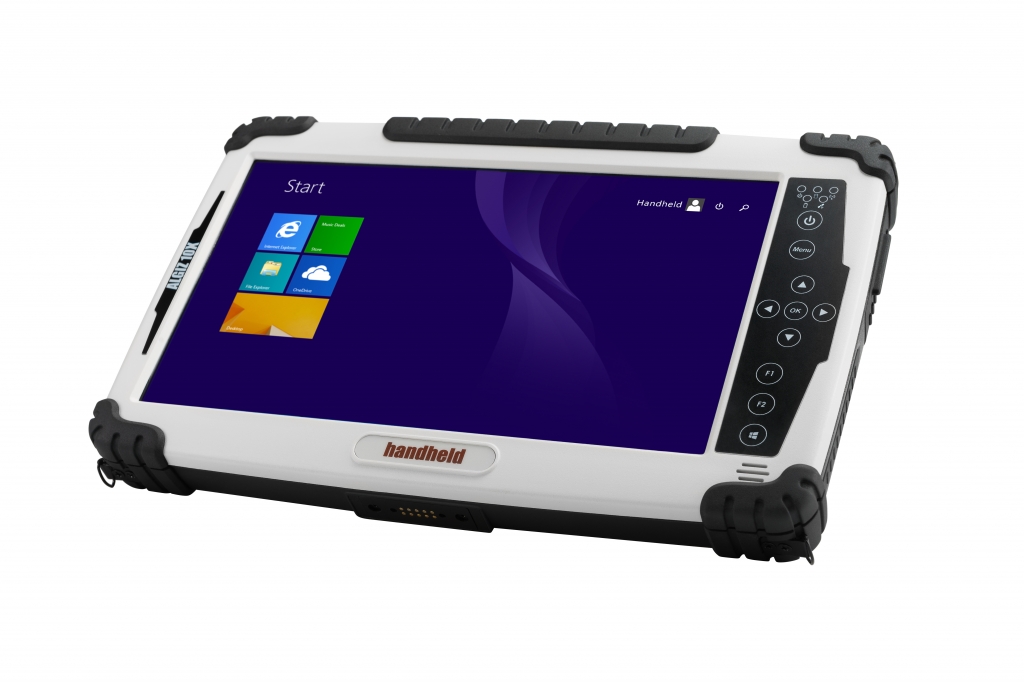

ALGIZ 10X
EXTREME FIELD PERFORMANCE
The powerful Algiz® 10X rugged tablet PC offers sophisticated technology and can withstand weather elements and harsh handling — a perfect match for today’s mobile workforce. It operates on a powerful Intel® quad-core processor, with a 128 GB SSD, expandable via microSD™, and 4 GB of DDR3 RAM, offering top-of-the-line computing capability and massive storage capacity. It runs Windows 8.1 Industry Pro.
The Algiz 10X features the latest generation of MaxView™ screen technology, with a brilliant 10.1-inch touchscreen that’s perfect for field professionals who need a large display to handle detailed maps or other visuals. The screen’s ambient light sensor adjusts backlighting automatically — so collecting data in bright sunlight is just as easy as reviewing it indoors.
The Algiz 10X is a lightweight rugged device at just 1.3 kg, and it’s only 32 mm thick. Even with such a portable size, this tablet is built to withstand the harsh conditions that come with all kinds of industry fieldwork. It’s IP65-rated and meets stringent MIL-STD-810G military standards for protecting against dust, water, vibrations, drops, extreme temperatures and varying altitudes.
With its integrated u-blox® GPS receiver and WAAS/EGNOS/MSAS capability, the Algiz 10X is also a powerful and accurate tool for mapping and surveying. And it offers ultimate mobility: antenna pass-through connectors for both GSM and GPS let you use an external antenna when the unit is docked, and hot-swappable capability with a lithium-ion battery pack lets you go all day without stopping or shutting down.
Data capturing is easy and intuitive with this Algiz tablet, thanks to the built-in 5-megapixel camera with LED flash, microphone jack and several connectivity options, including USB 2.0, VGA and RS232 ports. As for the keypad, this unit features three programmable buttons, space-saving 4+1 directional keys, one menu button and a resistive touchscreen that keeps navigation simple even in rainy weather.
On-the-go connectivity is crucial for today’s enterprises, and this tablet offers Internet connection options to keep you up to speed no matter where you are. It features the latest in wireless connectivity: It’s LTE ready with a fully integrated modem and antennas. Use WLAN for easy and fast connection through hotspots and local networks, or BT for short-range wireless connection to peripheral devices.
The Algiz 10X is designed for field performance. It has the strength and power to carry out your critical operations dependably, even in extreme environments. So whether you’re surveying, building, patrolling or distributing, you don’t have to worry about your technology – just let it do its job while you do yours.
Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.
Available Documents
ALGIZ 10X Data SheetGeset 117 Top and Bottom Labelling System
The Geset 117 labelling system is used to label square products on the top and bottom side automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage on the labelling system. Care should be taken on accurate alignment of the products. It is essential that the products are forwarded separately to the applicator with a gap between each other.
When the light barrier is reached, an application trigger is tripped. Both label applicators apply then in Wipe On procedure a label onto the product. The label on top side is pushed on the product by a brush or roller. The label on bottom side is pushed on the product by the self-weight of the product. After labelling the products move on and can be removed from conveyor by the customer.
View ProductX4Jet Plus
With the new high performance Markoprint X4JET print controller, different inkjet printing technologies can be controlled either simultaneously or alternately. The intuitive input unit of the new high performance Markoprint X4JET plus print controller is a boost to operator convenience. All system parameters can be entered easily and quickly, to be stored and called up later.
View ProductSolicom ClockInOut
Summary
Solicom ClockInOut is an easy to use application, with just a single screen showing the current time and after scanning a badge, a welcome or goodbye message is shown for the person just scanned. Badges that are allowed for entrance can be put in a lookup table. All badges scanned are saved in a report table. Via a supervisor menu, activated by a configurable special badge number, the download and upload of both tables can be controlled.
View ProductQuickScan L QD2300
The QuickScan L QD 2300 is an entry level laser scanner. The QuickScan reader series is Datalogic’s value line of general purpose handheld data collection products. The QuickScan L scanner provides a simple solution for those who prefer laser scanning technology and need to read bar codes at normal distances. The QuickScan L range has […]
View Product
