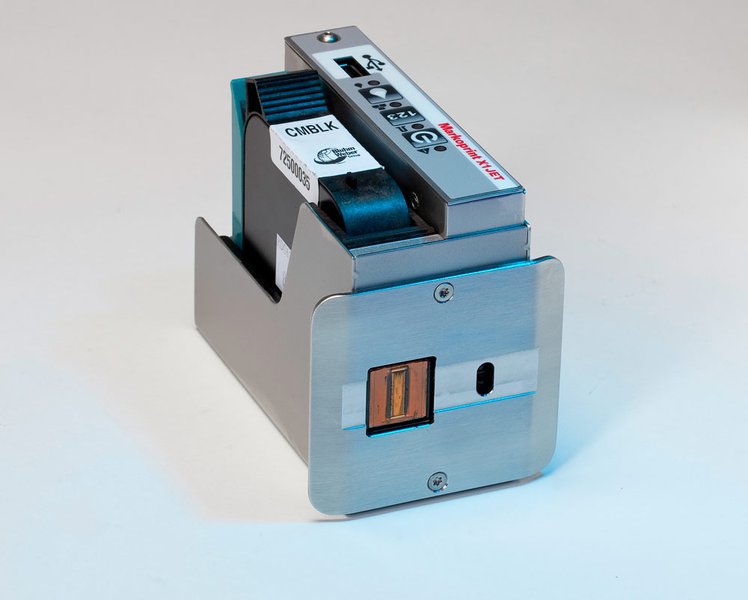

X1Jet HP MK2

Independent print system with HP technology Small and compact Control system and print head in one Simple and intuitive 3-button operation with LED control lamps for user-friendly system control SmartCard function for the automatic recognition and storage of ink levels Cost-efficient introductory system Variable controls via interface Simple layout and parameter transfer using a USB stick

Independent print system with HP technology
Small and compact
Control system and print head in one
Simple and intuitive 3-button operation with LED control lamps for user-friendly system control
SmartCard function for the automatic recognition and storage of ink levels
Cost-efficient introductory system
Variable controls via interface
Simple layout and parameter transfer using a USB stick

Adobe Reader is required to open and view PDF files. This can be downloaded free from adobe.com.

Available Documents

Geset 125 Horizontal Labelling System

The Geset 125 labelling system is used to label cylindrical products automatically. Depending on the type and dimension of the product, different label sizes are used. The products are fed manually or by a conveying system provided by the customer at an infeed passage of the labelling system. Care should be taken on accurate alignment of the products between the two freely mounted rollers of the roll conveyor. The side guide’s position the products flush with the outside edge of the roll conveyor.

The roll conveyor feeds the products to the labeller. There the label is applied with the part running forward onto the product and it is pushed by rotation and the back pressure of the wrapping unit onto the product. The back pressure of the wrapping unit (the speed of the wrapping unit is twice as fast as the speed of the base conveyor) enables the product in rotation. The roll conveyor forwards the finished labelled products to the outfeed. Here the products are removed manually or by the customer’s conveying system.
