APPC 1520T/1521T Touch Screen

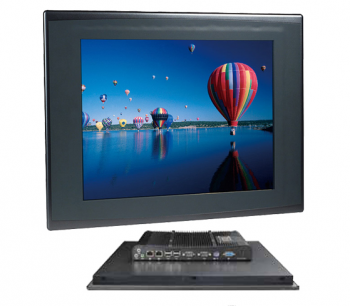

Incorporated a 15” 4:3 touch screen LCD panel with resolutions up to 1024×768 (XGA) and 350 nits brightness, industrial motherboard for versatile industrial applications, the APPC 1520T is fanless Panel PC based on the Atom™ D525 processor. The Panel PC comes with flush panel design and can have IP65 front for industrial applications. The touch screen provides the durable, reliable, and scratch-able benefits for easy maintenance in wide applications, especially for food and beverage industrial, which require strictly cleaning process.

appc 1520t & 1521t touchscreen

The APPC 1520T Panel PC has 2GbE LAN, 2 x COMs, 2x USB, PS2 KB/MS, and Line-in/Line-out/MIC-in. With wide range power input from 12V to 30V, the APPC series can have industrial field and machine devices. With 2nd display by VGA, APPC series can hook 2nd display via VGA port with different content. Depending on applications, customers can easily remove rear chassis to implement DDR3 memory, 2.5” HDD and 2 x Mini-PCIe. Based on APPC 1520T model, APPC 1521T has two RS-232/422/485 COM ports with isolation to fit industrial applications plus two additional RS-323 COM ports. In addition, one GPIO port for 4 input/output is available for digital control. There is also an optional CAN bus interface for communication with CAN bus device.
